TB02 Thermal Protector
Model No.: TB02 Thermal Protector
Specification:

◎Small size:13.5x5.4x2.4 (mm).
◎ Low internal resistance＜30mΩ.
◎ Snap action type, sensitive to current and temperature.
◎ Endurance life: 10000 cycles.
◎Suitable for vacuum impregnation process.
◎ Double protection of over-current & over-temperature.
◎ Lead wire length can be customized.

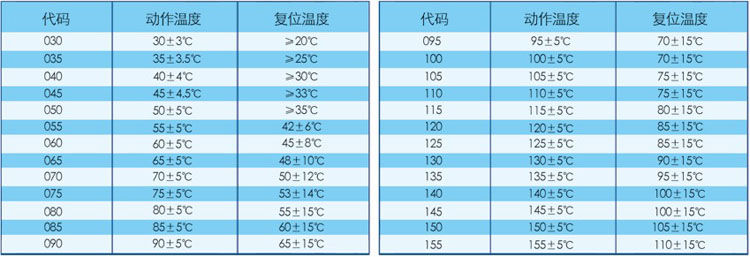

            Code                       Open temp.                 Reset temp.
