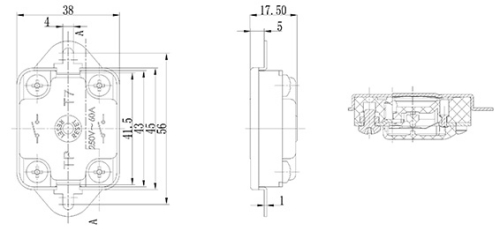

T7 Thermal Protector
Model No.: T7 Thermal Protector
Specification:

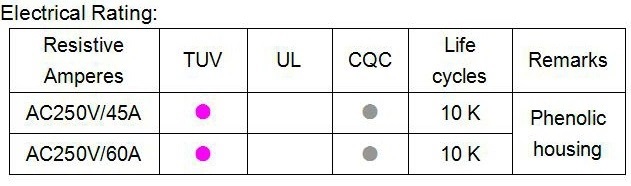

T7 Large electrical capacity 45Amps/60Amps bimetal thermostat for  water heater.

1)Operating temperature range: 40~150℃ (104~302°F)
2)Auto reset temp. Is below zero degree; manually reset-table temp. is required below 30℃ from operating temp.
3)Temperature tolerance: ±3.0K, ±4.0K, ±5.0K
4)Contact resistance: 50mΩor less

Applications
Electric water heater, industry oven etc..
